Trolley Combo-Cart

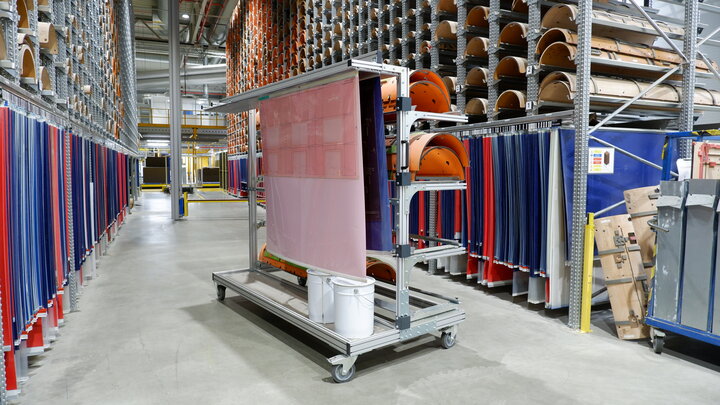

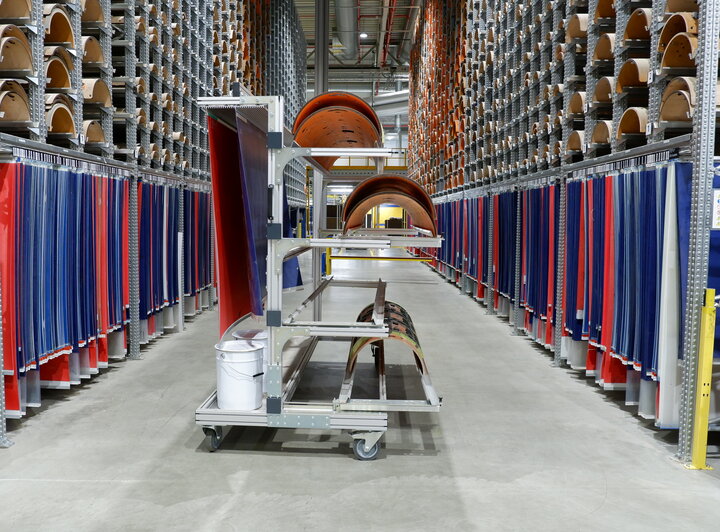

The combined bcm trolley for rotary dies and printing plates is constructed to ensure a safe and efficient transport of the rotary dies and printing plates between the storage and the converting lines in the production. They can be designed to fit the customer’s requirements and built to contain cutting dies, flexo stereos/printing plates and ink buckets so the operator can reduce the transportation time between storage and production. Specifically, the operator has easy access to all the tools so that the trolleys can be efficiently loaded and unloaded.
Contact bcm to design a customized trolley for your storage
Product description

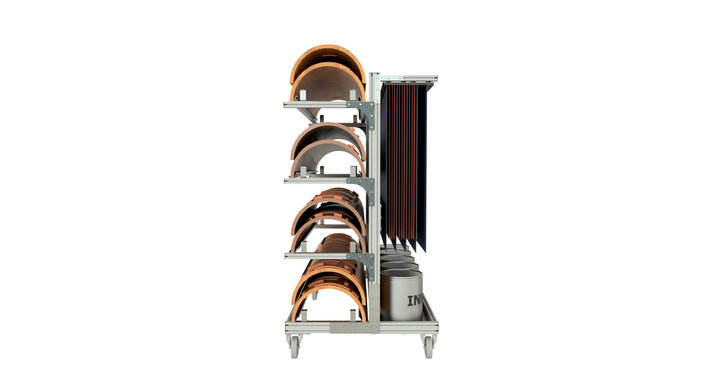

The trolley for rotary dies and printing plates is easy to operate and move due to durable and light weight construction of uni-profiles. It contains your entire production set of printing plates in one unit for safe, simple and efficient handling of printing plates. The trolley has large rubber wheels with front-mounted brakes ensure stable and safe operation. Uni-profiles are maintenance-free and easy to keep clean.
bcm’s standard trolley for printing plates/flexo stereos are available in our standard lengths of 2000 – 3200 mm. The trolley is adjustable in height from 417 – 1700 mm.
The combined rotary die and flexo stereo trolleys are supplied without profiles but will be offered when you have a dialogue with bcm sales department.
The trolleys are supplied unassembled but can be assembled at an additional cost.
Die length below 2.5 m
Item number: 5007925
- Width: 1100 mm
- Lenght: 2000 mm
- Height: 2128 mm
- Number of dies: 8
Die length above 2.5 m
Item number: 5007933
- Width: 1100 mm
- Lenght: 2500 mm
- Height: 2128 mm
- Number of dies: 8

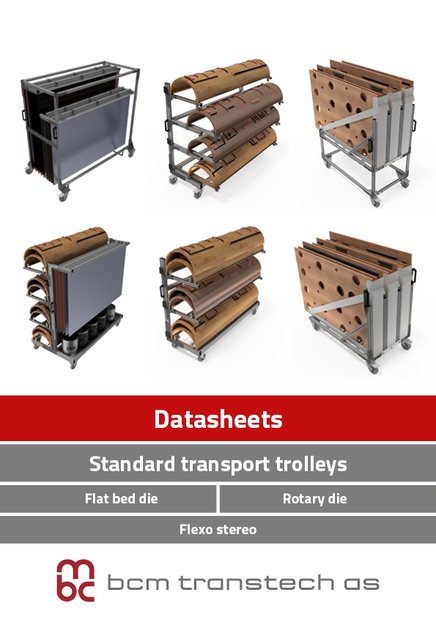

Datasheet
Click on the datasheet picture to download the full version
