Mobilator Pillar Crane
Our Mobilator for flatbed and rotary die handling are ideal solutions to optimize the operators’ safety and efficiency when setting up the flatbed or rotary die cutter. Specifically, they make it possible for one operator to change flatbed or rotary dies single-handedly without any heavy lifting.
In addition, the bcm Mobilator will aid in compliance with today’s health and safety regulations as almost all formats of flat bed or rotary dies exceed the maximum weight that a single operator is allowed to carry. The Mobilator is also ergonomically by far the best solution for the operators
The Mobilator consists of modified jib cranes that are adapted to fit the flat bed or rotary die cutter and the factory’s layout.
Product description

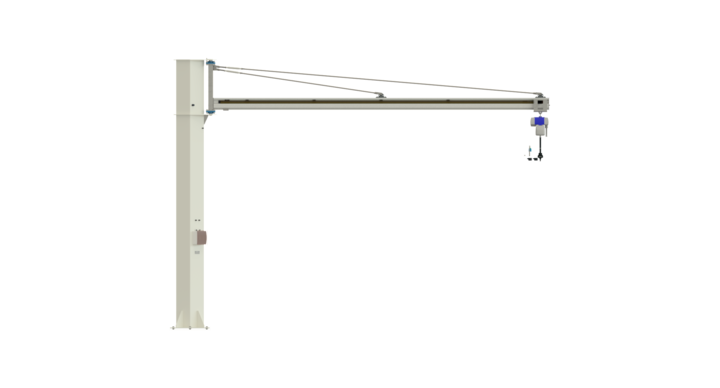

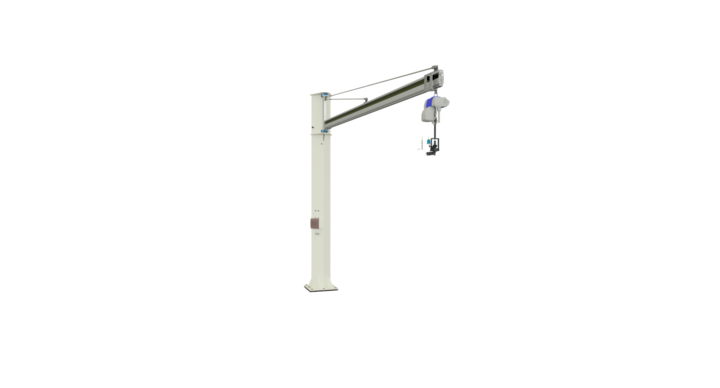

The pillar crane has a range of up to 5 meters and can rotate 270 ° around itself. It can lift a maximum of 80 kg and is a maximum of 4 meters high. If you want a custom-made pillar crane, please contact bcm to discuss your specific needs on: quotation@bcm.dk or contact your local agent.
Increase productivity: One operator can easily change cutting and stripping tools single-handedly.
Improve health and safety standard: Avoid heavy lifting and other safety concerns when handling flat bed or rotary dies.
Extend the lifespan of your cutting dies: Avoid expensive damage to flat bed or rotary dies during setup.
Complete control of the process: The flat bed or rotary dies can be rotated 360° horizontally and 180° vertically as well as being locked in positions that make it easy to change flat bed or rotary dies.
User-friendly handling: Can easily be connected to the threaded insert in the cutting and stripping tools and lifted via a remote control for optimal operator comfort.
Item number: 5001221
- Total height: 4 m (can be made taller)
- Lifting height: 2.8 m
- maximum load: 80 kg
- Power supply: 230V 10Amp
